BTX Cooler System

BTX cooler

Info about BTX here >>



Efficient CPU heatsink & fan for BTX systems.

Currently available for minimum order of 1000 pcs only. Worldwide shipping from China.




Entry Version

Premium version


Heatsink:



-Aluminium extrusion.

-BTX Compliant.

-689gr, 81x126x83mm.

-Spring-loaded mounting screws for specified downforce.

-Universal for AMD (AM2) and Intel (LGA775).

-Prepared for BTX supporter (prevent mainboard deflection due to BTX heatsink pressure).



Heatsink:



-Aluminium extrusion and copper core.

-BTX Compliant.

-689gr, 81x126x83mm.

-Spring-loaded mounting screws for specified downforce.

-Universal for AMD (AM2) and Intel (LGA775).

-Prepared for BTX supporter (prevent mainboard deflection due to BTX heatsink pressure).




   BTX heatsink BTX heatsink


Airduct + Fan:



-Plastic airduct, BTX compliant.

-92x25mm Sleeve bearing fan, 12volt, 0.38A.

-Fan mounted on rubber rivets to stop vibrations & noise.

-Air tight contact with front air duct.

-Silent fan technology with 4pin PWM connector.

-Speed: 700rpm(+/- 300) to 3600rpm (+/- 10%).

-Air flow: 0.39 to 2.0m3/min.

-Sound level: 18 to 44dB(A).

-MTBF:~30.000hrs.

-Cable length: 205mm.



Airduct + Fan:



-Plastic airduct, BTX compliant.

-92x25mm Ball bearing fan, 12volt, 0.38A.

-Fan mounted on rubber rivets to stop vibrations & noise.

-Air tight contact with front air duct.

-Silent fan technology with 4pin PWM connector.

-Speed: 700rpm(+/- 300) to 3600rpm (+/- 10%).

-Air flow: 0.39 to 2.0m3/min.

-Sound level: 18 to 41dB(A).

-MTBF:~30.000hrs.

-Cable length: 205mm.






Supported processors:



-AMD Sempron

-AMD Athlon 64, Athlon 64 X2 (up to 89W).

-AMD Opteron 1000 series (up to103W).

-All AMD CPU running onD2461 & D2470.

-Intel Celeron D 3xx (FMB 04A / 05A, up to 95 W max).

-Intel P4 5xx, 6xx (FMB 04A, up to 84W max).

-Intel P4 6xx (FMB 05A, up to 95W max).

-Intel Conroe E4xx, E6xx (FMB 06, up to 65W max).

-All Intell CPU running on D2312, D2317, D2451, D2610, D2314.

-NO support for Pentium D.

Supported processors:



-AMD Sempron

-AMD Athlon 64, Athlon 64 X2 (up to 89W).

-AMD Opteron 1000 series (up to103W).

-All AMD CPU running on D2461 & D2470.

-Intel Celeron D.

-Intel P4 5xx, 6xx (FMB 04B, up to 115W max).

-Intel P4 6xx (FMB 05A, up to 95W max).

-Intel Pent. D800/900 (FMB 05A, up to 95W max)

-Intel Conroe E4xx, E6xx (FMB 06, up to 65W max).

-Intel Conroe X6800 (FMB 05A, no overclocking

-All Intell CPU running on D2312, D2317, D2451, D2610, D2314.

-Support for Pentium D.





PWM  (Pulse Width Modulation) Technology:



Conventional fan controllers use a resistor to slow a fan down to only 50% of its nominal speed by reducing voltage. (fans donít spin under 6 volts). PWM can reduce the fan speed down to 10% by modulating the Pulse Width and constantly supply 12 volts. This means, less power consumption, less noise, increase of fan longevity, and no heat generated by resistors.





Mechanical requirements:



-All KM-Groups BTX chassis include SRM (Support Retention Module) with 4+2 mounting screws thread (UNC 6x32).

BTX SRM BTX cooler

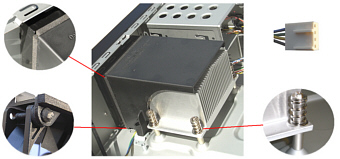

Air tight seal                                        4 pin PWM connector

BTX cooler mounting

Shock proof fan fixation           Spring-loaded mounting screws
