CS101  /  CS102

CS101 Micro ATX Desktop Chassis    CS102 Micro ATX desktop chassis



BTX Desktop PSU



Micro ATX Desktop / Tower with room for up to 6 drives.


  CS101
              CS101                                   CS101B                                              CS102 (Beige only)

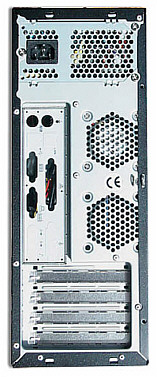

CS101 CS102 back

Back view

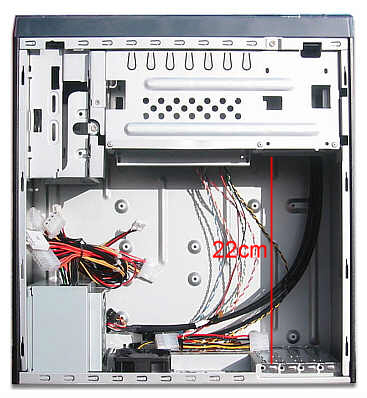

CS101 CS102 inside

Inside view



2 x 60mm fans

(1 included)



SFX PSU



SFX Power supply unit







Features:




bullet

Elegant acrylic front panel with vent holes.

bullet

Takes up to 4 standard height PCI cards.

bullet

Front USB and Audio ports.

bullet

Easy to install rotating drive cages.

bullet

Takes 3x60mm fan (one included).

bullet

Sticky rubber feet.

bullet

Tower or Desktop positioning.

bullet

2xHidden 3.5" bays plus space for 2 extra mini 2.5" HDD (Laptop type of HDD).

bullet

Top cover with vent holes and CPU air duct (Black CS101B only).

bullet

Beige chassis CS101 & CS102 come with a Flap door in the 5.25" bay. (Can be removed).

bullet

Black Version CS101B comes with no Flap door on 5.25" (Ask for flap door if required).

bullet

Beige CS102 comes with an aluminium & acrylic front as well as Fancy front blue LED light. (Aluminium sheet can be removed and LED can be disconnected from power supply if not requested).








Pictures:



  CS102 door cs102 front panel cs102 buttons cs102 5.25 bay


Front USB & Audio hinged door

(Mouse over to see USB)

Stylish acrylic front cover

On/Off & reset buttons

Removable Flap door

(Beige chassis only)

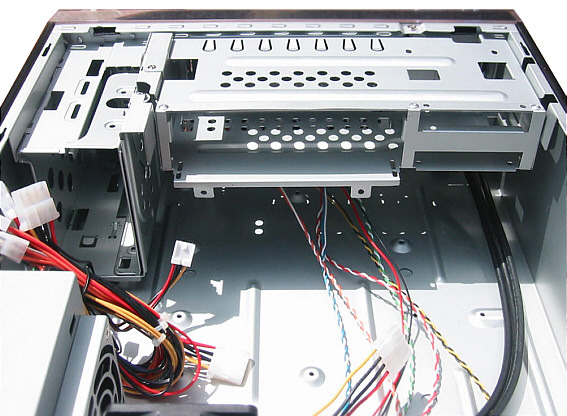

  CS102Inside.jpg (100264 bytes) cs102 hdd case cs102 drive cage cs102 front panel


Removable drive cages.

(click on picture for enlargement)

HDD bracket

Drive bays:1x5.25",

1x3.5" FDD, 2x3.5" HDD,  2x2.5" HDD.

CS102 aluminium and acrylic front panel

  cs102 front panel cs102 led
  CS102 aluminium and acrylic front panel

CS102 LED light








Specifications:





Model Number:

CS101 / CS101B / CS102




Logo Badge:

N/A


5.25" Bays: Exposed

1


3.5" Bays: Exposed / Hidden

1/2 (+2x 2.5" HDD space)


Mother board:

Micro ATX


Power Supply Unit:

SFX PSU 63x125x100mm


Ventilation:

2x60mm (Back,1 included), 1x60mm (front)


Size: H x W x D

135 x 355 x 385mm


Weight: NW / GW

6.6 / 7.2 Kg


Packing:

40'Cont: Pcs / UK pallet: 60 Pcs

Box size: 19x46x40cm








Options:



  computer fans
  2x 60mm fans
