This FB250-60NAS is a replacement PSU for some Netgear ReadyNAS boxes.

It has an improved ventilation and a single special 20pin connector.



RND4PSU1-10000S331-10006-02

Note:



-Our PSU replaces the original ST220FUB, FSP200-50PLA especially designed for the above PCs.

- This PSU is NOT compatible with standard ATX computers. This is because the 20pin connector pin out has been designed especially for the 4 computers mentioned above.

-This item includes the Power supply unit alone. It DOES NOT come with the tray.

-This PSU comes with a fitting bracket and a special 20pin connector. It has NO other connectors.

-Unlike the original, this PSU is not fanless. It has a quite 40mm fan and extra vent holes on both sides for an improved ventilation (no need to use the transparent plastic shield on our PSU).

-It is more powerful for a better upgradeability & system stability.
-It has high quality components, is very reliable and has an extremely low failure rate.
-The vent holes near the power socket are blocked when installed but the additional large vent holes on the side is sufficient to compensate.

-See how to remove the PSU from your ReadyNAS box here>>:

To purchase, click on this "buy Now" button and order item No. 31.

Readynas PSU



PSU compatibility list

Specifications:



-FB250-60NAS.

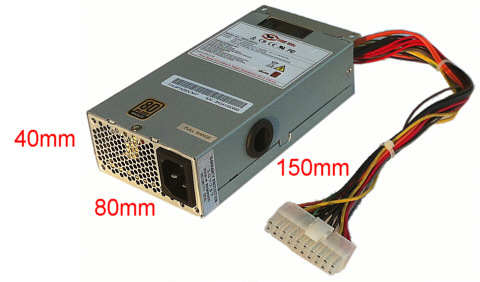

-Size: 40x80x150mm.
-Brand: Fire Bull (OEM PSU manufactured by FSP)
-Voltage: 110/230V (Full range).

-Certifications: All. 80+
-Connectors: Special 20pin.

-Unit Net Weight: 0.7Kg.

-Packing: Single box: 25x20x10Cm, 1Kg / Bulk Box: 12pcs, 32x32x30Cm, 10Kg.

-Rating: +3.3V: 18A, +5V: 18A, +12V: 17A, +5Vsb: 2A, -12V: 0.5A,







This PSU replaces the following PSUs:



RND4PSU1-10000S

331-10006-02

332-10581-01

332-10384-01

92Y3588

Modified ST-220FUB (with one single 20pin connector and no fan).

This PSU is compatible with the following computers:



Netgear ReaduNAS NV

Netgear ReadyNAS NV+

         RND4000

         RND4210

         RND4250

         RND4275

         RND42751G

         RND4410

         RND4425

         RND4450

         RND4475

         RND44751G

Netgear ReadyNAS NVX

Netgear ReadyNAS 1100

Netgear ReadyNAS 1500



This compatibility list is accurate and reliable to the best of our knowledge. However, it is only a guide to help you find a suitable PSU and we cannot guarantee compatibility at 100%. We do not assume any liability whatsoever for the accuracy and completeness of the above information.

Errors and omissions excepted (E&OE)
