ECE0229LP / ECE0229

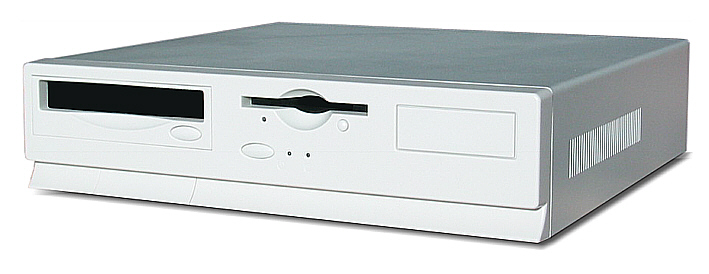

ECE0229 Slim Desktop chassis



BTX Desktop PSU



Micro ATX Slim desktop.


  ECE0229

  ECE0229 inside

Inside view









Features:




bullet

Takes Flex ATX & Micro ATX Motherboards.

bullet

Supports standard CD-ROM and Floppy drives.

bullet

2 versions available: ECE0229LP with 4 Low Profile cards, and ECE0229 with 3 x 32Bit Slot Riser Card.

bullet

Security lock.

bullet

Meet CE and FCC requirements.

bullet

Does NOT include Front & Audio ports despite the presence of a small front door under the 5.25" bay.

bullet

Takes a standard TFX PSU.

bullet

Can only be positioned horizontally as a desktop (NOT on its side becasue the bottom is not painted like some other more versatile slim chassis).








Pictures:



  ECE0229 cage ECE0229 low profile slot ECE0229 risercard


HDD & FDD cage

Low Profile Card slots & 60mm fan space. (ECE0229LP Version)

3 x 32bit PCI Slot Riser Card for ECE0229 Version

  tfx psu ECE0229LP back         ECE0229 back
  85x65x175mm TFX PSU ECE0229LP: 4 x Low Profile Slot                               ECE0229: 3 x 32bit PCI Slot Riser card

  ECE0229 5.25 bay ECE0229 5.25 bay ECE0229 5.25 blanking plate ECE0229 5.25 bay



Standard version

with 5.25" bay plate

5.25" plate can be removed

Optional 5.25" blanking plate

Door on hinges hides the holes made for

the optional front ports.

(This option not being available, the door can be glued shut)








Specifications:





Model Number:

ECE0229LP / ECE0229




Logo Badge:

N/A


5.25" Bays: Exposed

1


3.5" Bays: Exposed / Hidden

1 / 1


Mother board:

Flex ATX, Micro ATX 85x65x175mm


Power Supply Unit:

Standard TFX PSU


Ventilation:

1 x 60mm


Size: H x W x D

100 x 390 x 385 mm




Weight: NW / GW

4 / 5Kg


Packing:

40'Cont: 1625Pcs / UK pallet:48Pcs

Box size: 17x46x46cm








Options:



  PC fans ECE0229 5.25 blanking plate


1x 60mm fan

5.25" blanking plate
