KM1380 /
KM1390B
Small
Micro ATX Tower / desktop with front USB & Audio ports. |
 |
| |
|
|
|
|
|
| |
 |
|
| |
KM1380B
KM1380 |
|
| |
 |
 |
 |
|
| |
Inside View |
Back view |

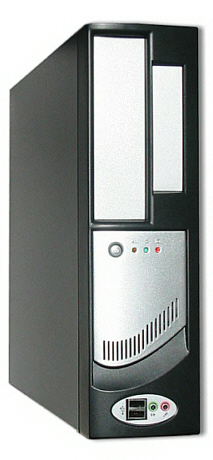

Alternative front
panel:
KM1390B |
|
| |
|
|
|
|
|
| |
 Alternative colour:
KM1380Blue |
 |
|
| |
Alternative colour:
KM1380BRed |
|
| |
 |
|
| |
|
Optional Twin 5cm
fans with holder and 3pin motherboard connector.
Situated right
above the CPU, it provides an outstanding ventilation.
|
|
| |
 |
|
| |
Features: |
|
|
|
|
| |
|
|
| |
 |
Supports standard CD-ROM and
Floppy drives. |
|
|
Security lock and
intruder alarm. |
|
|
4
low profile cards. |
|
|
Meet CE and FCC requirements. |
|
|
Front USB & Audio ports (Connected to motherboard). |
|
|
Thumb screws to secure top. |
|
|
Stylish Black & Silver design. |
|
|
Slim 80mm fan & standing foot for tower position included.
|
|
|
Front USB & Audio ports. |
|
|
CPU Air
duct. |
|
|
| |
|
|
| |
|
|
| |
Pictures: |
|
|
|
|
| |
|
|
|
|
|
| |
 |
 |
 |
 |
|
| |
LED in On/Off button |
Foot |
Intruder switch |
TFX PSU 85x65x175mm |
|
| |
|
|
|
|
|
| |
|
|
| |
Specifications: |
|
|
|
|
| |
|
|
|
| |
Model Number: |
KM1380B / KM1380 |
|
| |
Logo Badge: |
N/A |
|
| |
5.25" Bays: Exposed |
1 |
|
| |
3.5" Bays: Exposed / Hidden |
1 / 1 |
|
| |
Mother board: |
Micro ATX (9.6" x 9.6") |
|
| |
Power Supply Unit: |
TFX PSU 85x65x175mm |
|
| |
Ventilation: |
1 x slim 80mm (Included), 2 x 50mm
(Optional) |
|
| |
Size: H x W x D |
100 x 340 x 430mm |
|
| |
Weight: NW / GW |
5 / 6KG |
|
| |
Packing: |
UK pallet: 64Pcs
Box size: 16x49x40cm |
|
| |
|
|
|
| |
|
|
| |
Options: |
|
|
|
|
| |
|
|
|
|
|
| |
 |
 |
|
|
|
| |
Twin 5cm fans |
Socket 478
3.2Ghz P4 CPU cooler |
|
|
|
| |
|
|
| |
|
|
| |
