Server9008  / 5U 19" Rack9008

9008 Sever rackmount chassis



BTX Desktop PSU



 Multifunction chassis: can be used as a STORAGE ENCLOSURE, SERVER CASE or 5U RACKMOUNT.


  Server9008 server case

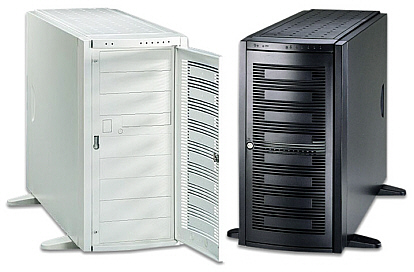

Server 9008 / 9008B

Tower version

Rack9008 6U rackmount

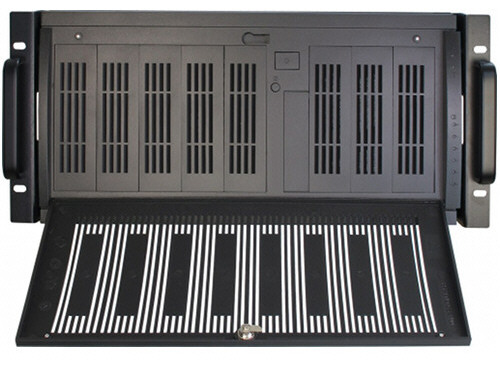

5U 19" rackmount version


  9008 server case back          9008 server case inside


9008 server case front








Features:




bullet

Outstanding ventilation with up to 5 fans.

bullet

Versatile server which can easily be transformed into a 5U rackmount.

bullet

(Remove top cover and feet, Screw sliding rails and handles).

bullet

Plastic front panel with door and magnets to keep it closed.

bullet

Front door with key lock.

bullet

Takes standard PS2 PSU or Mini Redundant PSU.

bullet

Lockable side panel.

bullet

LEDs: Power, Fail, 6xHDD

bullet

I/O ports: ATX window, Wide SCSIx2, Narrow SCSIx2, SCSI IDx1.

bullet

Cooling fans can be placed in front of the 5 lower bays if used as internal bays. Alternatively the fan bracket can be removed to use those 5 bays as exposed.

bullet

Includes a long card holder as well as 4 adjustable short card holders.

bullet

Includes a 12cm rear fan with protective metal grid (with 4pin PSU Molex connector).

bullet

The accessory box includes:

bullet

- 4 adjustable card holders.

bullet

- A pair of plastic feet

bullet

- A bag of screws with 2 door keys.

bullet

- 7 metal covers for PCI slots.

bullet

- 4 metal cover for front 5.25" bays.

bullet

- 2 x 5.25" to 3.5" adaptors to fit HDDs in 5.25" bays.

bullet

- A metal bracket adaptor to fit a standard ATX PSU.








Pictures:



  Server9008 server case Server9008 server case Server9008 server case
  Inside view

Removable front Fan Bracket to access 5x5.25" bays.

(Takes 1x12cm or 2x80mm fans).

Mouse over the npicture.

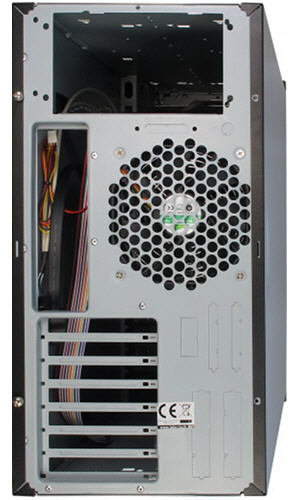

Back View






Long Card holder

Rear 12cm fan with guard

4 adjustable card holders








Specifications:





Model Number:

9008 / 9008B




Logo Badge:

N/A


5.25" Bays: Exposed

8


3.5" Bays: Exposed / Hidden

1 / 0 (use one of the exposed bays for the HDD. Two 5.25" to 3.5" brackets are included)




Mother board:

ATX. Ext. ATX up to 12" x 13"




Power Supply Unit:

Standard PSII ATX / Mini redundant PSU




Ventilation:

Rear: 1x 120mm (Included), front: 2x 80mm or 1x 120mm (Not included)




Size: H x W x D

450 x 220 x 600mm




Weight: NW / GW

15 / 18Kg




Packing:

40'Cont: 410 Pcs / UK pallet: 20Pcs

Box size: 35x55x67cm








Options:





PC case fan

Mini Dual PSU ATX PS2 power supply unit


PC case fans

Mini Redundant PSU MRT-6320P

ATX Power Supply Unit

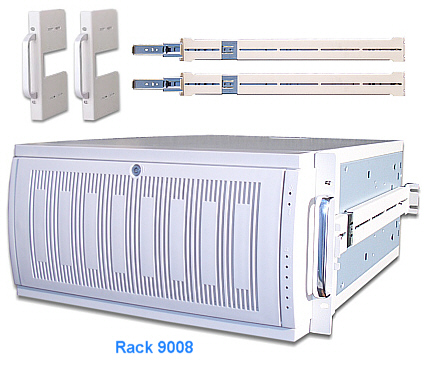

  9008 Rail set

Maximum extension: 77cm

9008 handles 9008 handles


Rail & Handles set (Black or Beige)

(Not available separately)
